Advanced LT for RENAULT

Enhance your vehicle diagnostics by integrating the Advanced LT plugin into Torque Pro. This powerful add-on enables you to monitor specific RENAULT parameters in real-time, including advanced engine sensor data, giving you deeper insight into your car's performance.

The Advanced LT plugin significantly expands the list of PIDs and sensors available within Torque Pro, focusing specifically on RENAULT vehicles. It allows users to test the plugin with a limited set of sensors before making a purchase. Please note that this version does not include calculated sensors such as Injector Duty Cycle (%).

Supported RENAULT Models and Engines

The plugin has been tested on the following RENAULT models equipped with DiagOnCan (CANBUS ONLY):

• Captur 1.2 (X87 H5F)
• Captur 1.5 dCi (X87 K9K)
• Clio-III 1.6 (X85 KxM)
• Clio-III 1.5 dCi (X85 K9K)
• Duster 1.6 (X79 K4M)
• Duster 1.5 dCi (X79 K9K)
• Fluence 1.6 (X38 H4M)
• Fluence 1.5 dCi (X38 K9K)
• Laguna-III 2.0 (X91 M4R)
• Laguna-III 1.5 dCi (X91 K9K)
• Logan 1.4/1.6 (X90 KxM)
• Logan 1.5 dCi (X90 K9K)
• Megane-III 1.6 (X95-M H4M)
• Megane-III 1.5 dCi (X95-M K9K)
• Sandero 1.6 (B90 KxM)
• Sandero 1.5 dCi (B90 K9K)
• Scenic-III 1.6 (X95-S H4M)
• Scenic-III 1.5 dCi (X95-S K9K)
• Symbol 1.6 (L35 KxM)

For more information about RENAULT engines, visit: RENAULT Engine List.

Plugin Requirements

To ensure proper functionality, it’s essential that you have the latest version of Torque Pro installed on your device. Please note that Advanced LT is not a standalone application and will not operate without Torque Pro.

Installation Instructions

1. After downloading the plugin from Google Play, verify that it appears in the list of installed applications on your Android device.
2. Open Torque Pro and tap the "Advanced LT" icon.

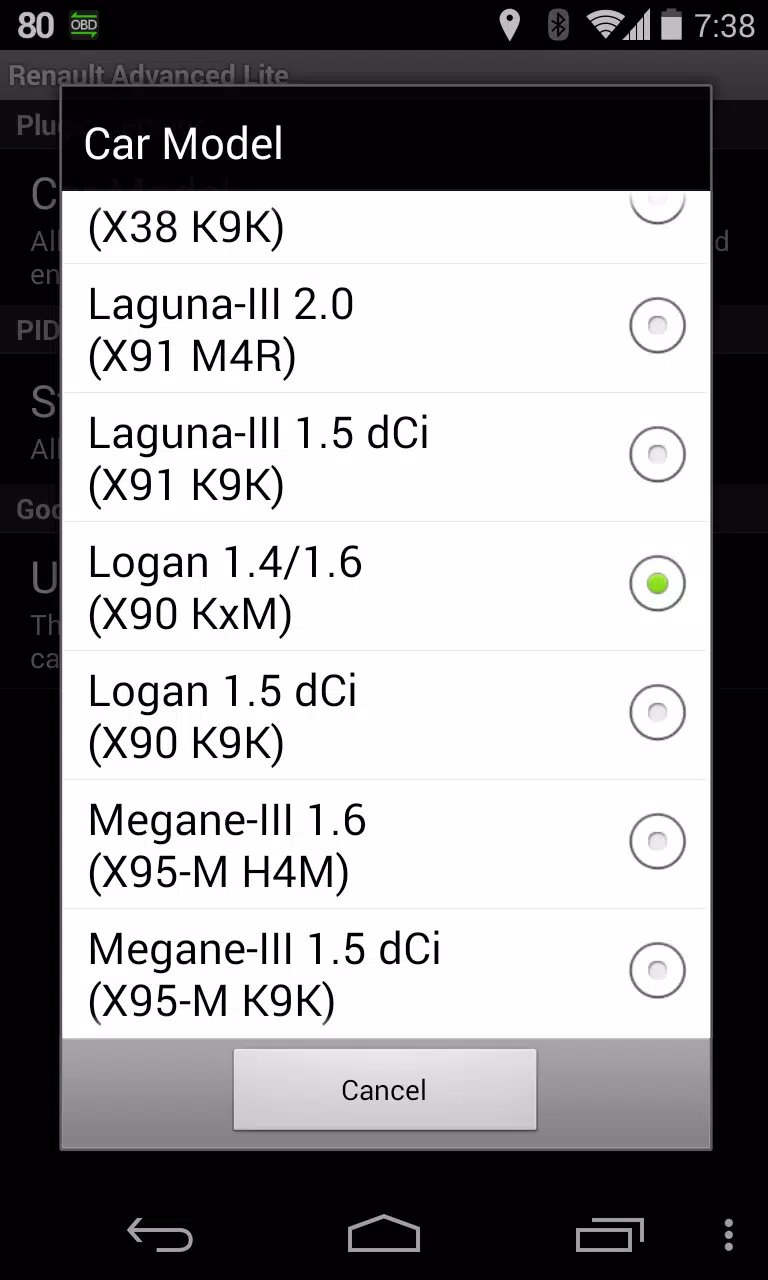

3. Select the appropriate engine type and return to the main screen of Torque Pro.
4. Navigate to the "Settings" menu in Torque Pro.
5. Confirm that the plugin is listed under "Plugins" > "Installed Plugins".
6. Scroll down and select "Manage extra PIDs/Sensors".
7. If you've added any custom or predefined PIDs previously, they will appear here; otherwise, the list will be empty.

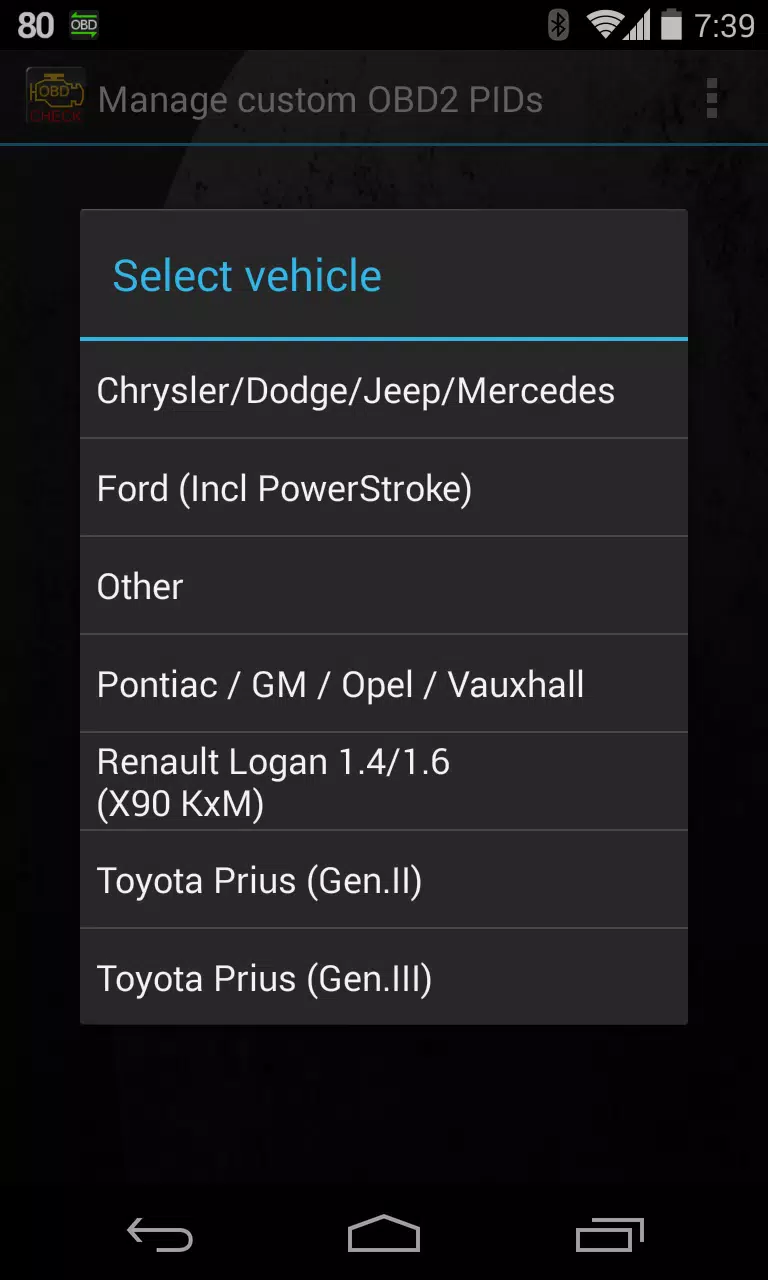

8. From the menu, choose "Add predefined set".
9. You may see multiple entries for different RENAULT engine types—ensure you select the correct one.
10. After selecting the correct entry, additional sensors should now appear in the Extra PIDs/Sensors list.

Adding Displays in Torque Pro

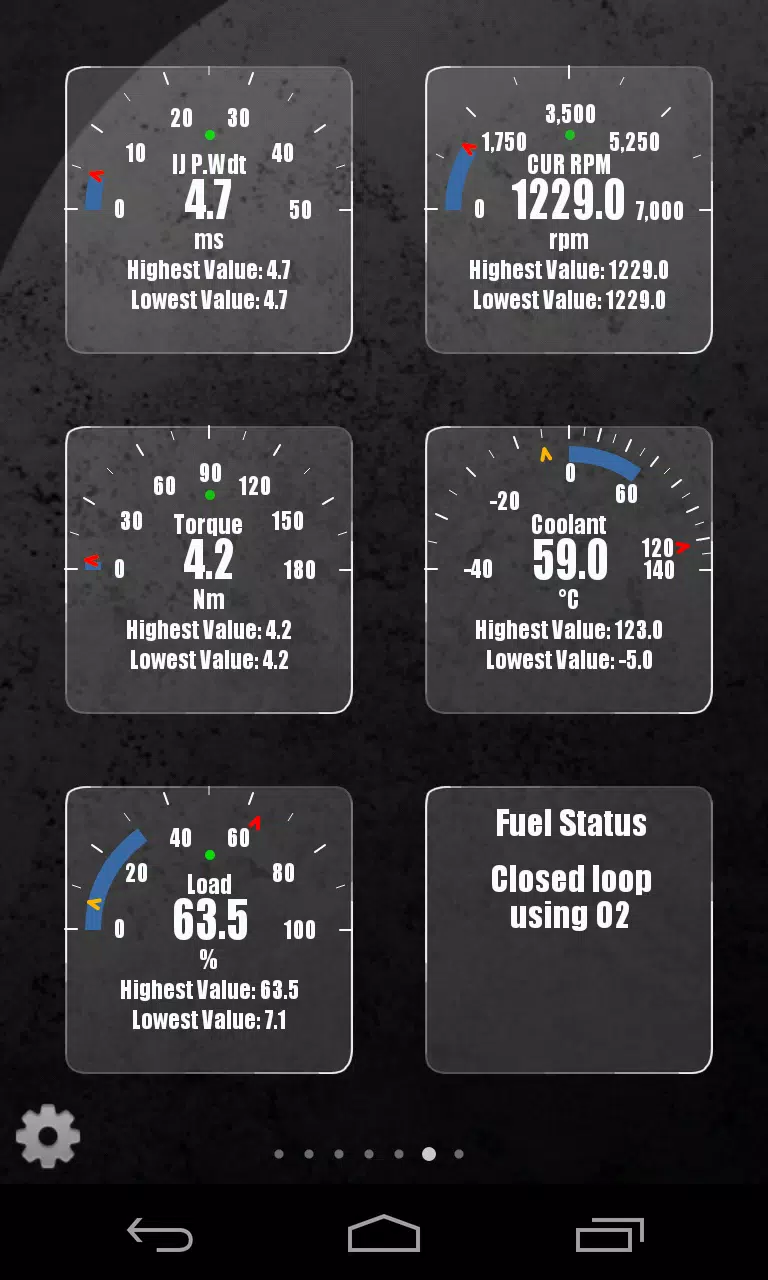

1. Once the sensors have been successfully added, go to the Realtime Information/Dashboard section.
2. Press the menu key and select "Add Display".
3. Choose the display type that suits your preference (Dial, Bar, Graph, Digital Display, etc.).

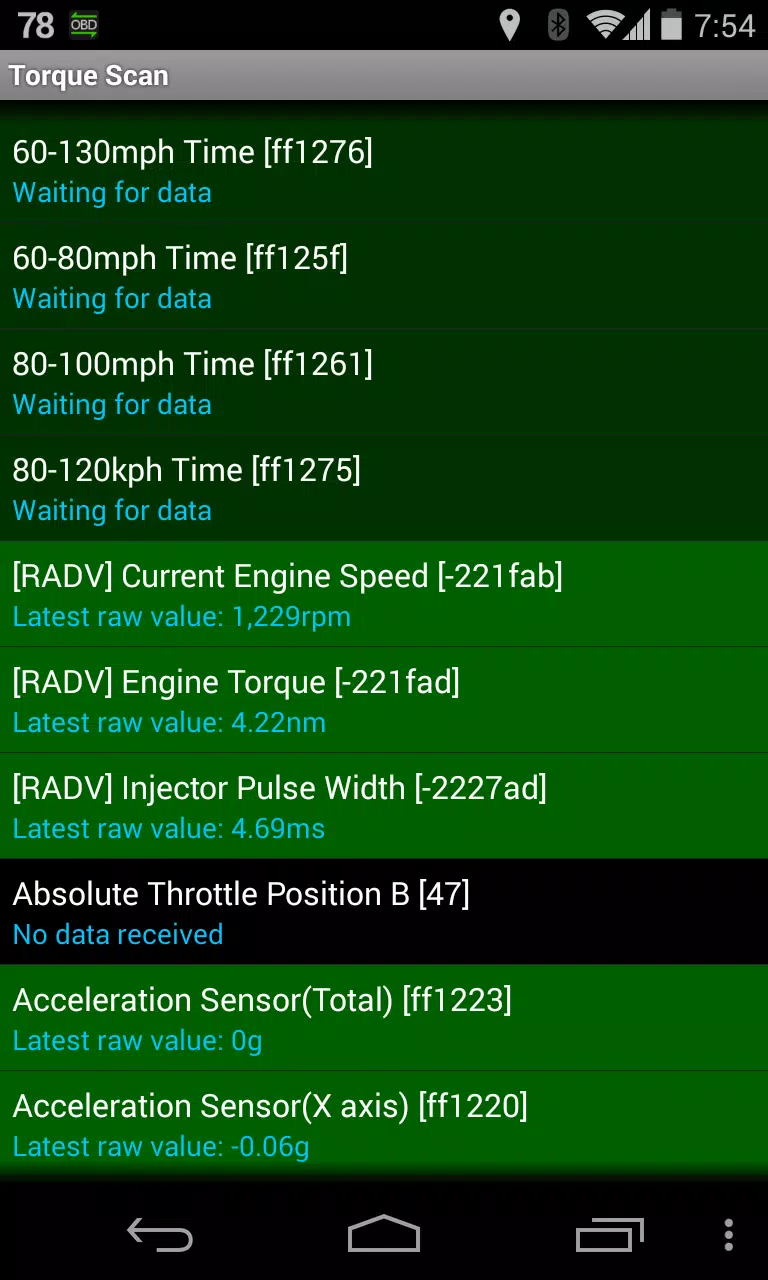

4. Select the desired sensor from the list. Sensors provided by Advanced LT begin with "[RADV]" and are typically located right after the time sensors at the top of the list.

Future Updates

Additional features and parameters will be introduced in future releases. If you have comments or suggestions, feel free to share them to help improve the plugin experience.

What's New in Version 2.0

Last Updated: December 14, 2019

• Improved API26+ handling for third-party plugins, aligning with Torque Pro's main fix for better compatibility and stability.
